People with PAD have greater risk

Product / Support

Overview

CardioVision ® MS-2000 automatically calculates Ankle Brachial Index (ABI) by measuring the blood pressure in the extremities with an oscillometric method. By measuring Arterial Stiffness Index (ASI) simultaneously with ABI, the condition of the arterial vessels can be diagnosed with higher accuracy.

Measurement item

Arterial stiffness index (ASI)
Systolic blood pressure
Diastolic blood pressure
Pulse pressure
Pulse rate
Ankle Brachial Index (ABI)

ABI Measurement

Wrap cuffs around all extremities of the patient, and measure the blood pressure in each extremity in the siting position. Each measurement will be completed in approximately 9 minutes, and ABI will be calculated automatically after measurements.

Framingham Risk Analysis

By entering lipid profile after ASI measurements, Framingham Risk (a patient’s 10-year risk of developing cardiovascular disease) can be determined, which helps in counseling patients on lifestyle-related diseases.

Print Report

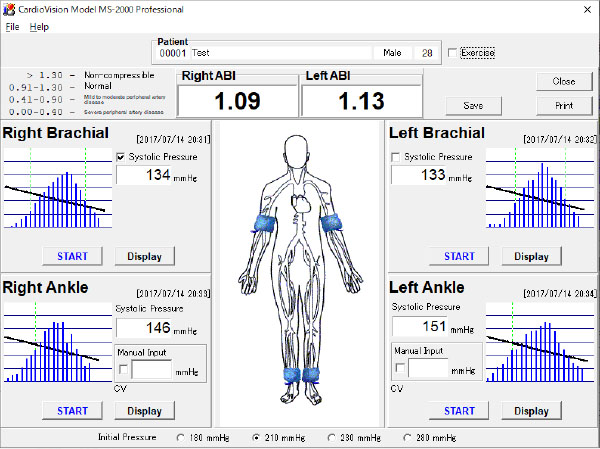

ABI Measurement Report

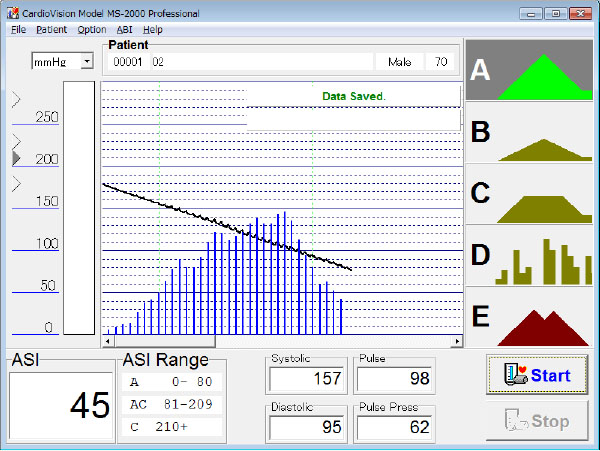

ASI Measurement Report

Specification

Primary Specifications

Classification
Class II , Type BF
Dimensions
(Width)18.0 (Depth)21.3 (Height)8.0cm
Weight
Approx. 1.0kg
Power
AC100-240V 50/60Hz, 10VA
Measurement range
20 – 280mmHg
40 – 200bpm
Measurement accuracy
Pressure:+3mmHg
Pulse:+5%

Operating Environment

CardioVision ® MS-2000 requires a personal computer with an operating device that is Windows Vista or later OS versions.

Hardware

Computer
100% compatible PC/AT computer
CPU
A CPU recommended by each OS
RAM
A RAM capacity recommended by each OS
HDD
Only the program’s available capacity exceeds 12MB (The required HDD may vary in available data capacity due to measurement, as HDD’s overall available capacity must exceed 10%)

Software

Supporting OS
Windows Vista, 7, 8
